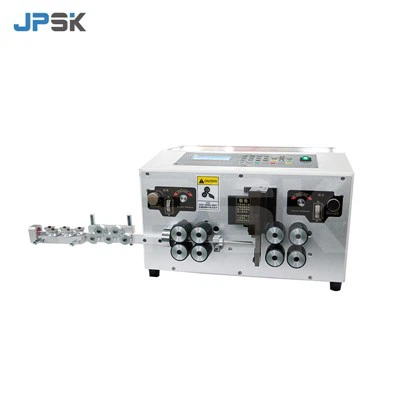

Computer Wire Cutting And Stripping Machine



Computer wire stripping machines are essential tools in the preparation of electrical wires and cables. These machines are designed to strip the insulation from electric wires to facilitate their installation, connection, and repair. They are widely used in various industries, including electronics, automotive, and telecommunications, to ensure precise and efficient wire processing.



The Advantages Of Computer Wire Cutting And Stripping Machine
Laser Marking Machine
Busbar Chamfering Machine
Steel Processing Machine
Copper Busbar Bending Machine

Microcomputer intelligent control, the computer wire stripping machine adopts computer control, and there is a high-definition display screen on the computer wire stripping machine, which can clearly see the current operation content of the machine, and the progress can also be clearly seen. The computer automatically recognizes the content without the need for manual operation, and only needs to input numerical values to clearly see it. The touch screen makes operation simple, and the highly sensitive touch screen allows all users to perform simple operations.



The processing speed is fast and the use is safe. Previously, ordinary wire stripping machines used for a period of time would experience a situation where the machine was very hot. When encountering this situation, it was necessary to stop working and dissipate heat, which would affect the work progress. Ordinary wire stripping machines also require manual operation in many places during use, making it easy for people to get injured. Therefore, their safety is not high. The computer wire stripping function effectively avoids these shortcomings and has automatic heat dissipation function, During the work process, there is no need to stop heat dissipation, and the safety factor during operation is high, generally there will be no harm to people.



A multi-purpose computer wire stripper can install multiple blades, regardless of the shape of the blade. Therefore, in work, you only need to purchase a computer wire stripper to cut multiple lines, and if necessary, you can also customize it. Customized models can also be multi-purpose for one machine.



Automatic cleaning, the computer wire stripping machine can perform automatic cleaning when in use. There is a special dust and dandruff removal setting at the back of the machine, which can quickly clean the residue during the cutting process and prevent the residue from entering the interior of the computer wire stripping machine, allowing for quick cleaning.



Specifications



Maximum cut length

65 530 inches {99 999cm}

Maximum material size

30awg to 10awg {0.25mm to 2.58mm} - wire dependent

Max Feed Rate

Up to 60" per second - wire dependent

Tolerance

Up to 1% - wire dependent

Batches

67

Max Strip Length

Up to 4.0 inches {10.2cm} - wire dependent

Power

120V



Additional Information



Package Length

22 inch / 560 mm

Package Width

22 inch / 560 mm

Package Height

22 inch / 560 mm

Package Weight

98 lbs / 44.4 kg

Package Type

Packed in one wood crate shipping box



TECHNICAL PARAMETER



Cross section

0.1-6mm2(Other size can be special ordered)

Applied wire

PVC,PE,Teflon,Silicon and other plastic wires.

Cutting length

0.1-99999mm

Cutting precision

±(0.2%*L+1)mm

Stripping length

0.1-30mm (Other size can be special ordered)

Middle stripping

1-13

Capacity

3000-7000pcs/h

Tool materials

Imported tungsten steel and high speed steel

Drive

4 wheels driven

Feeding speed

2m/s

Power

220V 50HZ

Motor

0.2KW

Weight

28kg

Dimension

420×340×280mm
